cframe.h File Reference

#include <stdio.h>

Include dependency graph for cframe.h:

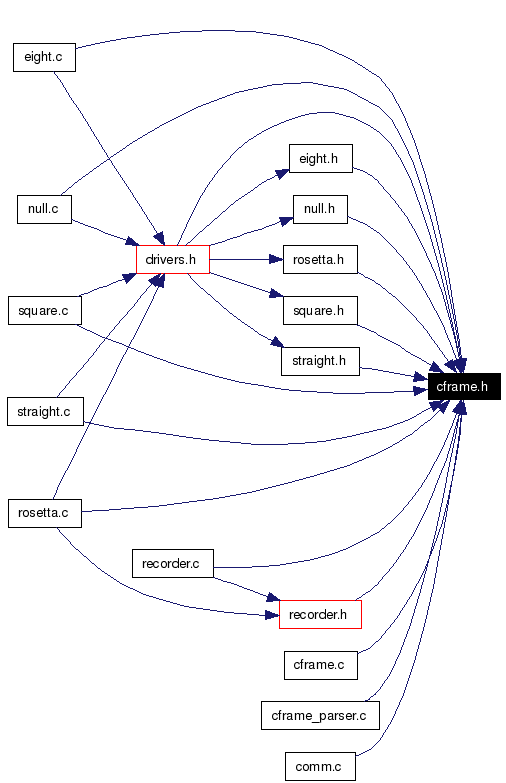

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	cframe
	A structure for containing communication frames. More...
Typedefs
typedef cframe	cframe_t
	A structure for containing communication frames.
Functions
int	cartcomm_decode_msg (cframe_t *cf, char *inMsg)
	Decode the message into a control frame.
int	cartcomm_encode_msg (cframe_t *cf, char *outMsg)
	Encode the control frame as a message string.
void	print_cframe (FILE *file, cframe_t *cf)
	Print a control frame in a human readable form.

---

Typedef Documentation

typedef struct cframe cframe_t

A structure for containing communication frames. Referenced by cartcomm_decode_msg(), cartcomm_encode_msg(), cartcomm_synchronize(), drive(), driver_eight(), driver_null(), driver_rosetta(), driver_square(), driver_straight(), parse_avpair(), parse_msg(), print_cframe(), recorder_add(), and recorder_export().

---

Function Documentation

int cartcomm_decode_msg (  cframe_t *  cf, char *  inMsg )

Decode the message into a control frame. Parameters: cf  control frame to decode into inMsg  buffer to decode Return values: 0  success -1  failure Definition at line 126 of file cframe.c. References cframe_t, cframe::checksum, DEBUG2, DEBUG3, cframe::msg_len, and parse_msg(). Referenced by cartcomm_encode_msg(), cartcomm_synchronize(), and drive().

Here is the call graph for this function:

int cartcomm_encode_msg (  cframe_t *  cf, char *  outMsg )

Encode the control frame as a message string. Parameters: cf  control frame to encode outMsg  buffer to encode into Return values: 0  success -1  failure Definition at line 43 of file cframe.c. References APPEND, ASSERT_EQUAL, cartcomm_decode_msg(), cframe_t, cframe::cmd_irad, cframe::cmd_mode, cframe::cmd_speed, cframe::cur_irad, cframe::cur_mode, cframe::cur_speed, cframe::cur_throttle, DEBUG3, deg_to_nmea(), cframe::error_code, cframe::gps_epe, cframe::gps_lat, cframe::gps_lon, cframe::gps_speed_east, cframe::gps_speed_north, cframe::gps_status, cframe::seqno, cframe::speed_limit_error, cframe::status, cframe::steer_limit_error, and cframe::timestamp. Referenced by drive().

Here is the call graph for this function:

void print_cframe (  FILE *  file, cframe_t *  cf )

Print a control frame in a human readable form. Parameters: file  file handle to output towards cf  control frame to output Definition at line 161 of file cframe.c. References cframe_t, cframe::cmd_irad, cframe::cmd_mode, cframe::cmd_speed, cframe::cur_irad, cframe::cur_mode, cframe::cur_speed, cframe::cur_throttle, cframe::error_code, cframe::gps_epe, cframe::gps_lat, cframe::gps_lon, cframe::gps_speed_east, cframe::gps_speed_north, cframe::gps_status, PRINT, cframe::seqno, cframe::speed_limit_error, cframe::status, cframe::steer_limit_error, and cframe::timestamp.

---
